Introduction

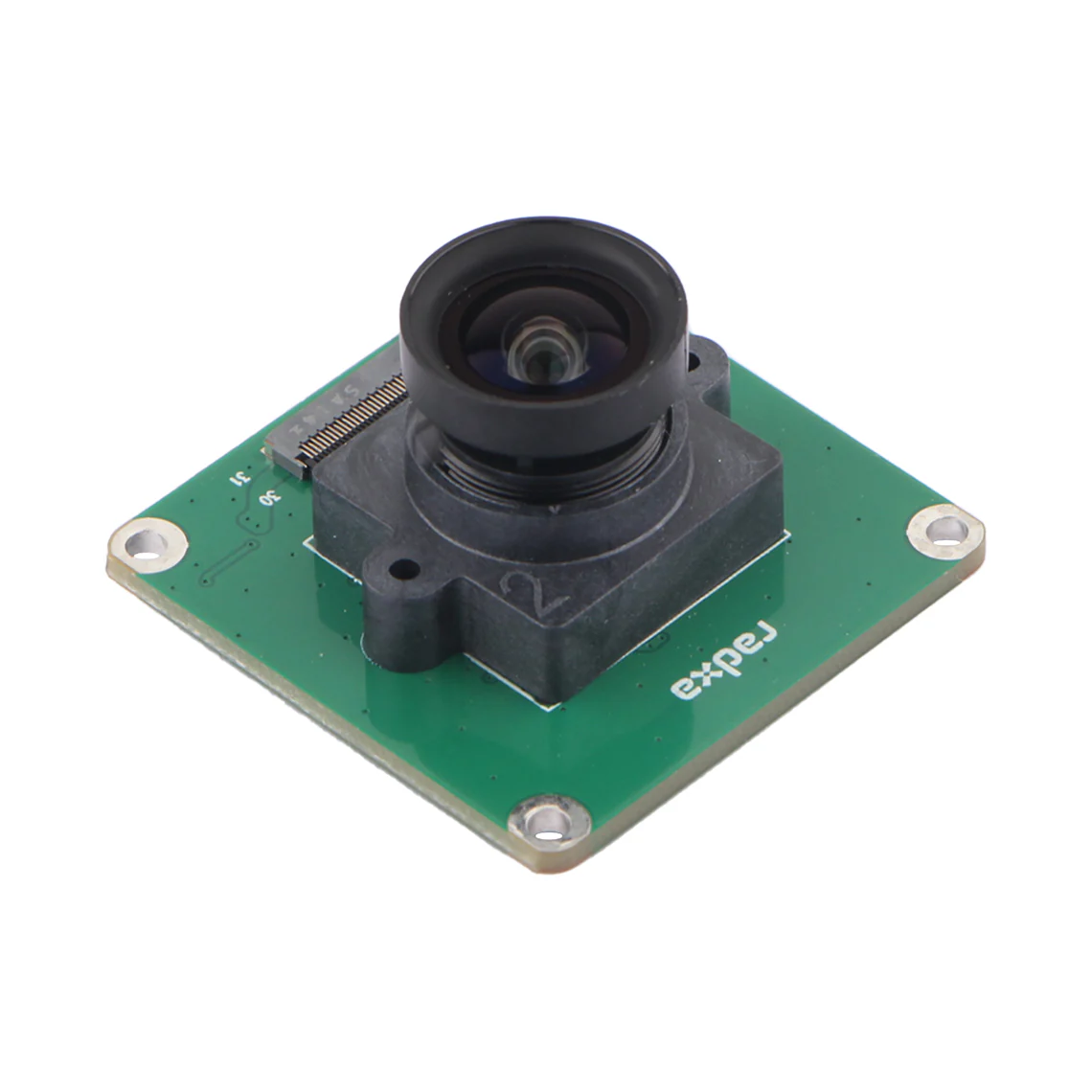

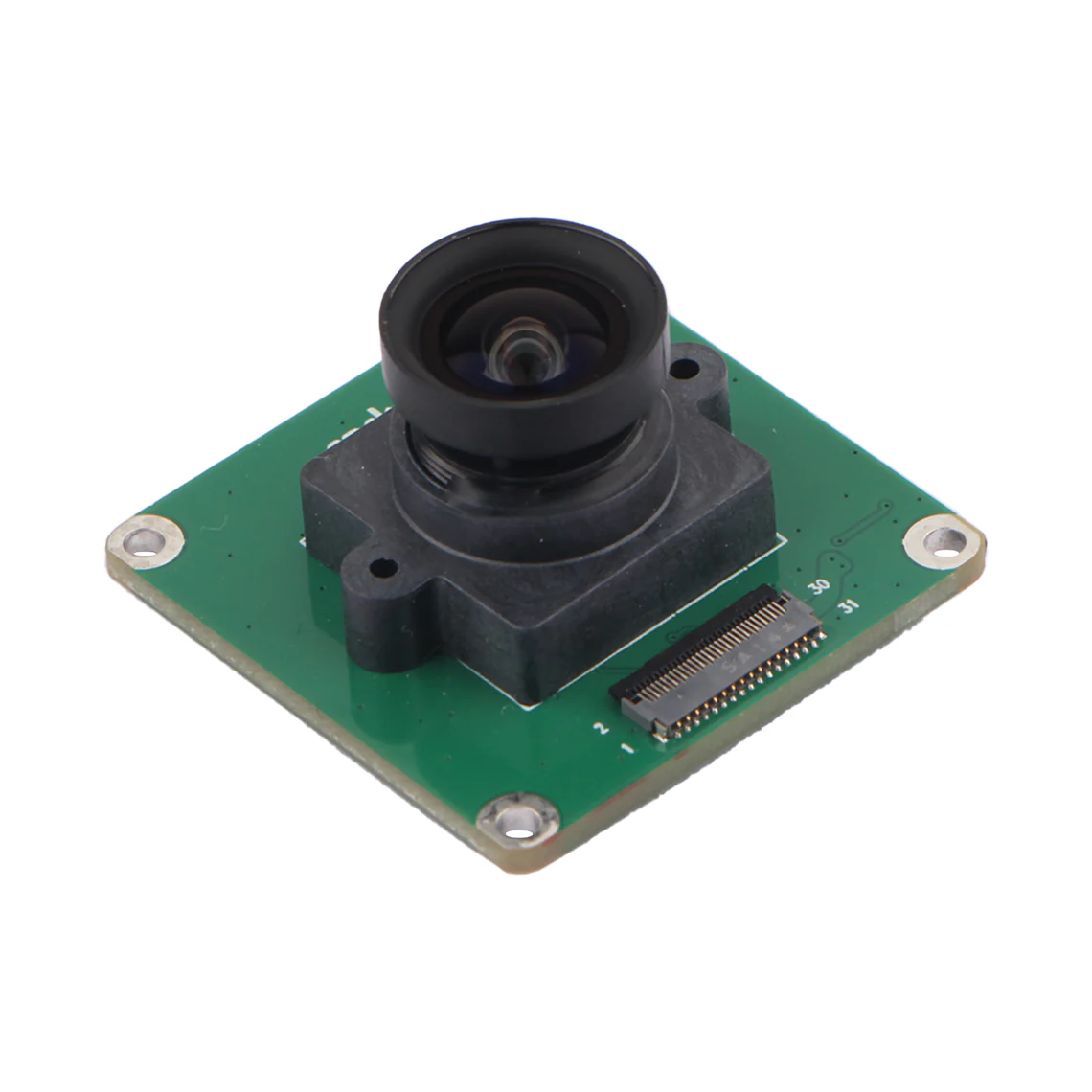

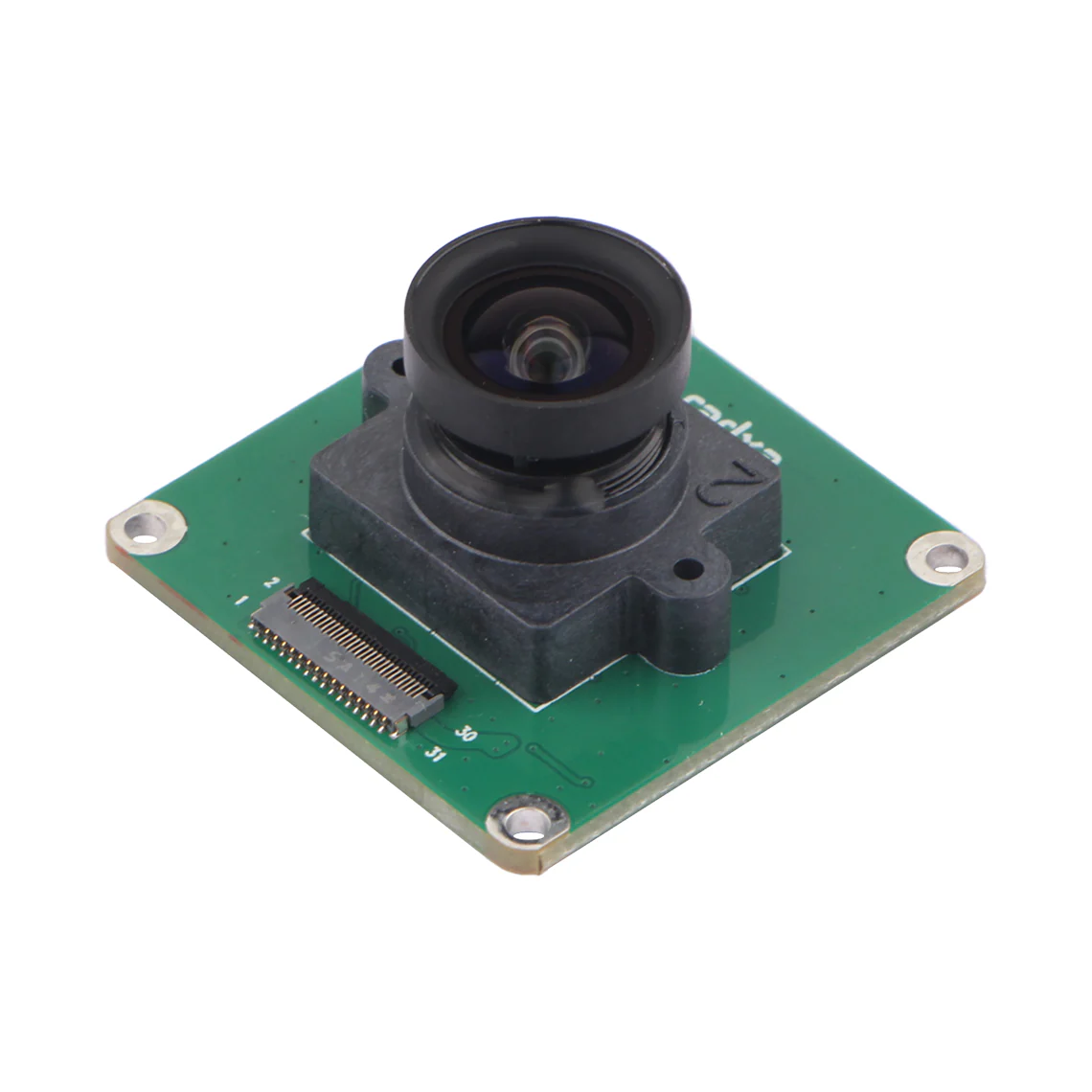

Radxa Camera 4K is an high resolution camera module for Radxa products powered by a Sony IMX415 image sensor with 8.29M pixels and up to 4K resolution. Radxa Camera 4K Module is capable of the following applications:
・ Surveillance cameras
・ FA cameras
・ Industrial cameras

Specification

• Sensor：
  • SONY IMX415
  • Diagonal 6.43 mm (Type 1/2.8)
  • 8.29M pixel
  • Unit cell size: 1.45 µm (H) × 1.45 µm (V)
• Output:
  • MIPI CSI‑2 4‑Lanes serial data output
  • RAW10 / RAW12 output
• Lens Specification:
  • Interface Type： M12XP0.5
  • Focal Length(EFL): 2.95±5%mm
  • Back Focal Length(BFL): 4.64mm
  • Flange Back Length(FBL): 4.00mm
  • Single lens operating temperature：‑40°C ~ +85°C
  • FOV
